Lithium Battery Polyimide Kapton Film Heater 5v 12v 24v Customizable
(0
评论)
估计运输时间:
3 天
所售:
内部产品
内部产品
价格:
$1.00
/Pc
分享:
畅销产品
Product Description

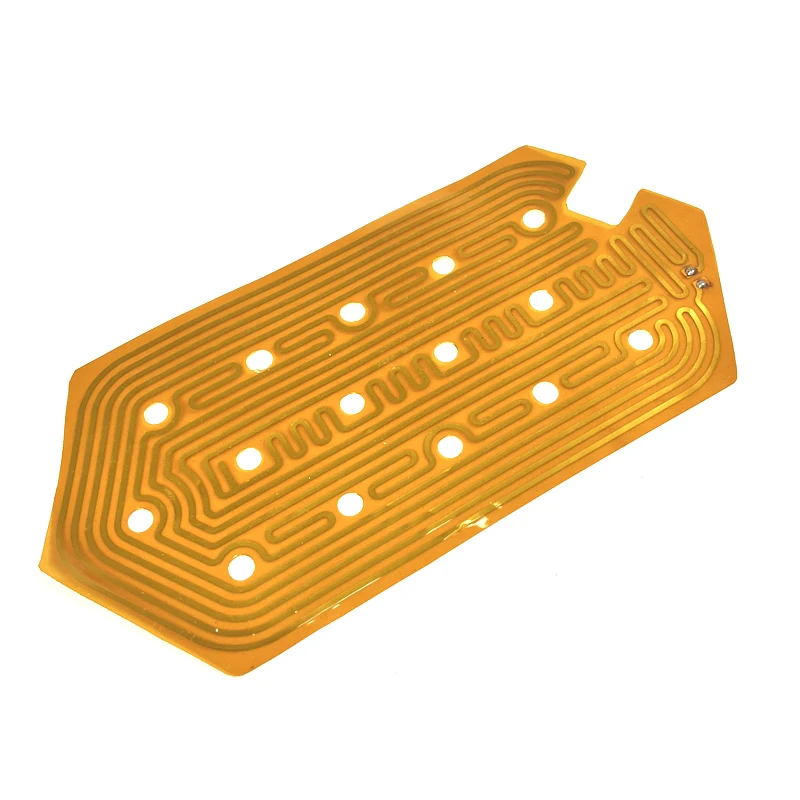

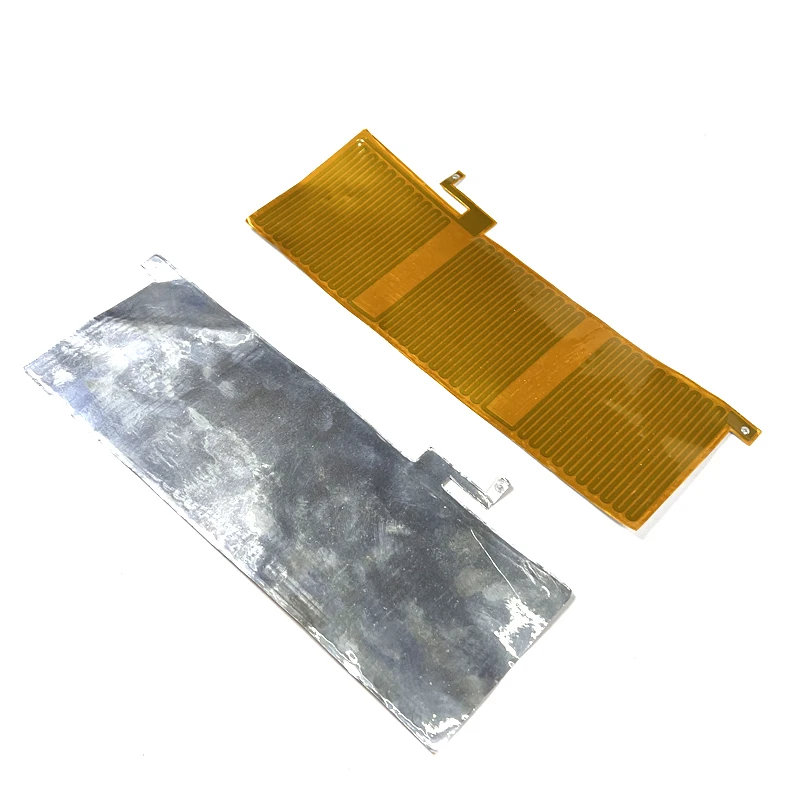

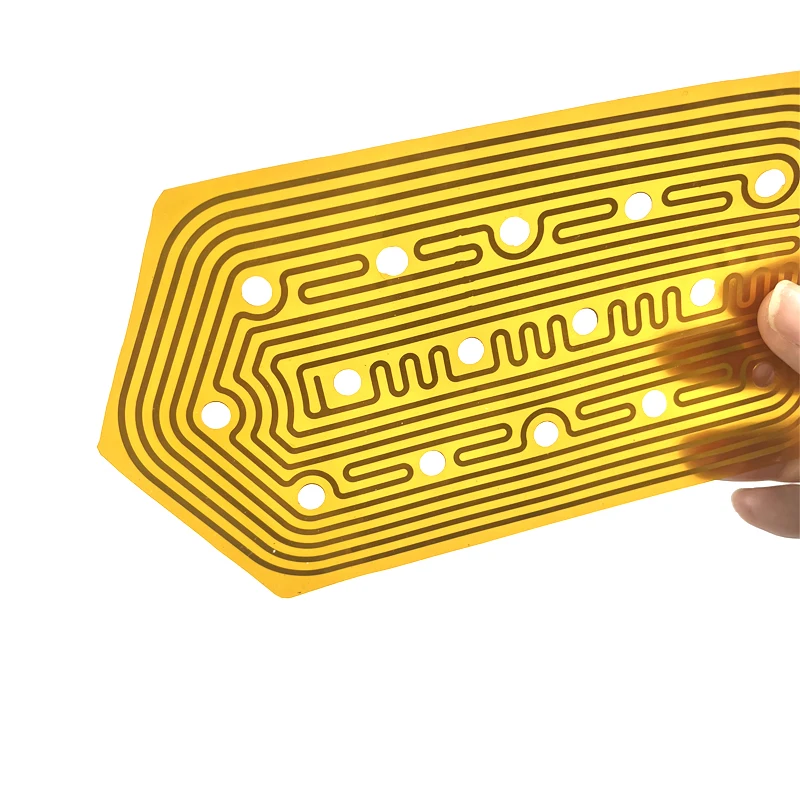

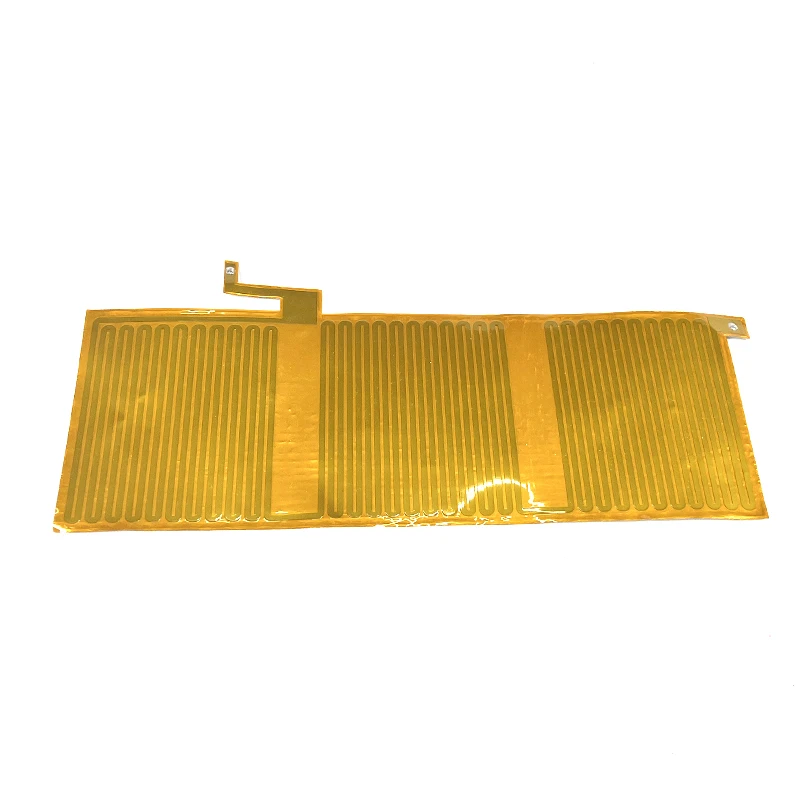

The flexible Kapton/Polyimide film heater is a film with a certain thickness composed of a resistive element made of etched metal foil and a polyimide insulating layer, which has good flexibility. Compared with traditional electric heaters, polyimide flexible film heaters show strong advantages.

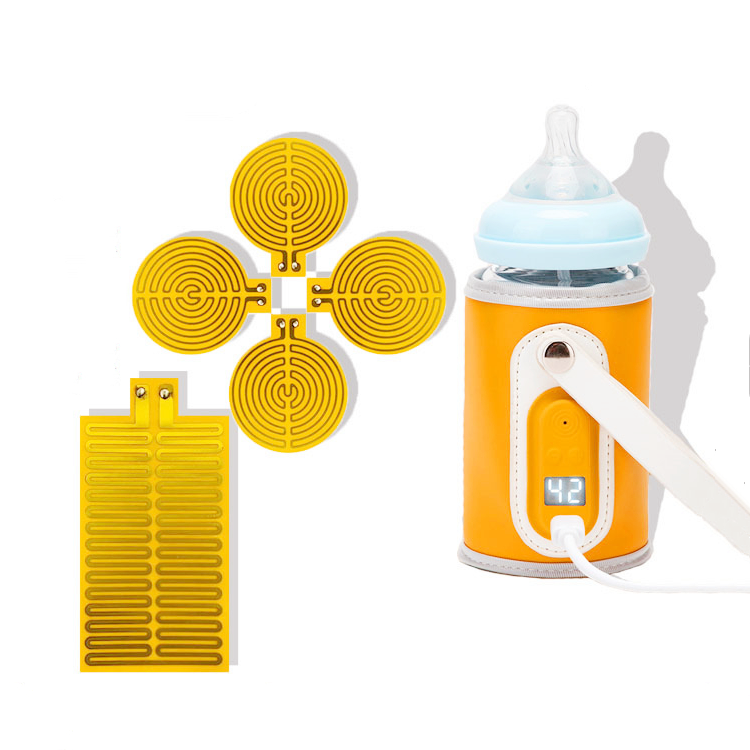

Due to excellent insulation strength; excellent electrical strength; excellent thermal conductivity; excellent resistance stability. This allows it to be widely used in some low-temperature heating products such as electric shoes, electric gloves, electric clothing, massage chairs, pet heating pads, mobile phones, circuit boards, etc. And it can obtain quite high temperature control accuracy, which is very suitable for applications with limited space. , Such as satellites and spacecraft, airplanes, portable instruments, high-precision electronic equipment, laboratory precision instruments, etc.

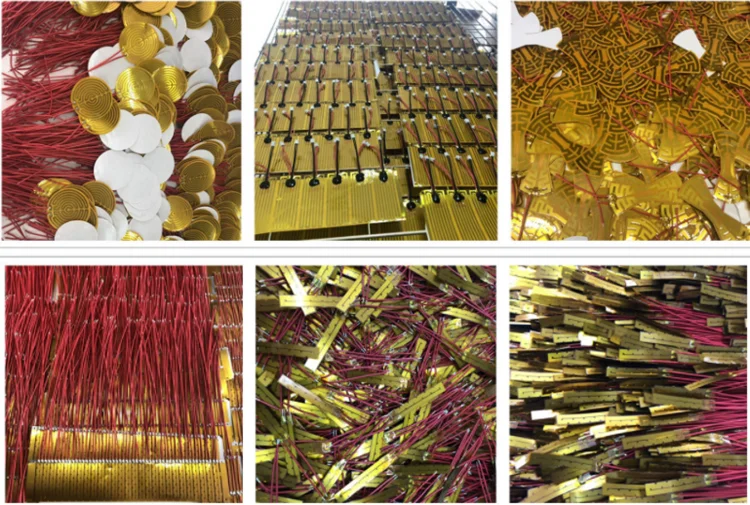

Customer Photos
Specification
Product Name | Flexible Kapton Polyimide Film Heater | ||||||
Voltage Range | 1.5V~220V Available | ||||||
Power Density Range | 0.025W/cm²~5W/cm² Available | ||||||
Lead Material | Teflon, Kapton or Silicone Insulated Leads Available | ||||||
Heaters Thickness | 0.12mm～0.5 mm Available | ||||||
Heater Size | Maximum 600mm*3000mm; Minimum 10mm*10mm | ||||||
Heating Material | Etched Metal Foil | ||||||
Power Reasonable Error | ±5% | ||||||
Details Images
Excellent insulation strength
Excellent electrical strength
Excellent heat transfer efficiency
Excellent resistance stability

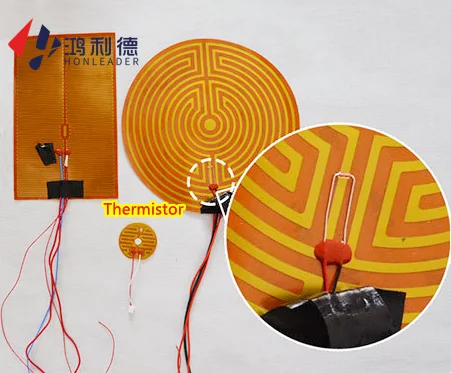

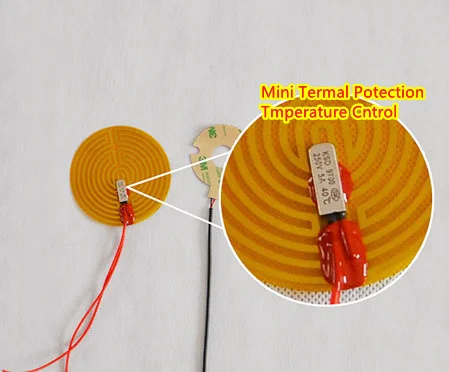

1.Thermal protector/NTC/K type Thermocouple
2.With adhesive type

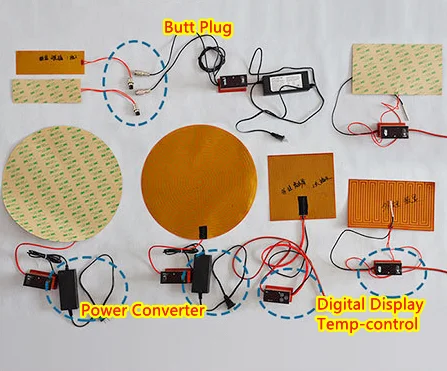

3.With butt plug type
4.Temperature control type with digital display
5.With power converter type
When the temperature reaches the set temperature, the contact is closed to cut off the circuit.
When the temperature is lower than the set temperature, the closed contact automatically restores the working state
High sensitivity
Wide operation temperature range
Strong stability
Strong overload capacity
How to Order?
When ordering, please provide parameters according to the following items
1. Working voltage
2. Working power
3. Shape: any size within the plane range (within the scope of production design, drawings provided if possible)
4. Temperature control method: Thermal protector, NTC, K-type thermocouple (specified by the user, NTC is generally recommended)
5. Application way:
Firstly, stick-on type.Put double-sided tape on the back of the heating film, and stick it directly to the heated object.
Secondly, mechanical type.This method is to leave a mounting hole on the heating film when designing the heating film, and use heat-conducting material and screws to fix the heating plate on the heated object.
Note: WE ARE MANUFACTURER AND MOST OF OUR PRODUCTS ARE CUSTOMIZED, IF YOU HAVE ANY QUESTION OR SPECIAL REQUIREMENTS, PLS COME BACK TO US
Packing & Delivery

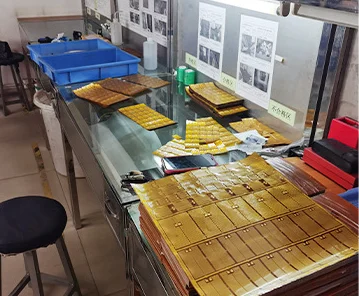

Company Profile
● YANCHENG HONLEADER ELECTRIC CO.,LTD is located in the Yancheng City, Jiangsu Province, China,near to Shanghai. As a global supplier in the Industrial heaters and heating elements and other heaters, Honleader is to create added value for customers around the world.
● Company values: Innovation Quality Service.
● Honleader is one of the leading companies in China on the design and manufacture of various industrial/home appliances heater and heating element. With good quality and reasonable price and excellent service.
● Honleader adheres to the concept of "Quality first" in production, and puts the customer's design needs in the first place.From the establishment of the project, design and development, production and manufacturing, quality inspection to finished product delivery, each link has always maintained good information feedback and provided excellent after-sales support services.
● Through 20+ years of development, Honleader not only masters the leading and mature electric heating product design, research and development, manufacturing technology, but also integrates the industry's high-quality supplier and customer resources.
● Compared to its competitors, Honleader have rich product experience, Senior professional technical engineer team, Complete production and testing equipment, Active customer communication service. Honleader Electric Co., Ltd. has the ability to provide for various industries customer with exclusive,efficient, stable and excellent "One-stop" electric heating products solutions.
FAQ
Q: What is the correct voltage of the heating film/heating plate/heating belt?
A: The standard heating film heating plate/heating band is specified by resistance instead of voltage. This allows you to operate it at different power levels. When selecting the heating film/heating plate/heating tape, you should consider the size, resistance, working temperature, total power and power density (W/cm²) that suit your application. The power density (not the total power) determines the application voltage, high power The density depends on the type of insulation; installation method and operating temperature. However, users may often encounter some situations. If you are not very familiar with the application, please contact us for more information!
Q: Can the heating film/heating plate/heating tape be hung in the air?
A: Due to the relatively small volume of the heating film/heating plate/heating belt, they are usually not suitable for heating in the air. When the heating film/heating plate/heating belt is installed to be heated by conduction (rather than convection and remote radiation) When it is on the object, its running state can reach a better state.
Q: What is the area size of the heating film/heating plate/heating tape wire accessories?
The area size of the non-heating wire accessories varies with the wire size, insulation material, wire outlet position and the size of the heating film/heating plate heating belt. If it is a polyimide heating film, it is between AWG30 and AWG18 , Please specify your space limitations when specifying a custom design. The wires can be connected to the heating film/heating plate/heating joint outside the heating zone.
Q: Can the heating film/heating plate/heating tape be immersed in water or other liquids?
A: Usually the answer is NO! The materials used in the heating film/heating plate/heating tape are waterproof, but the edges are not sufficiently sealed in order to be immersed in liquid.
Q: After receiving the heating film/heating plate/heating tape, can it be cut into the required size and shape?
A: No. The heating film/heating plate/heating tape cannot be cut or cut. Because the component wires cover the entire heating film area, so as to limit the thermal diffusion effect of the internal heating wire design; if it is cut, it will produce an electrical open circuit and cause the electrical components to leak out, making it unusable.
